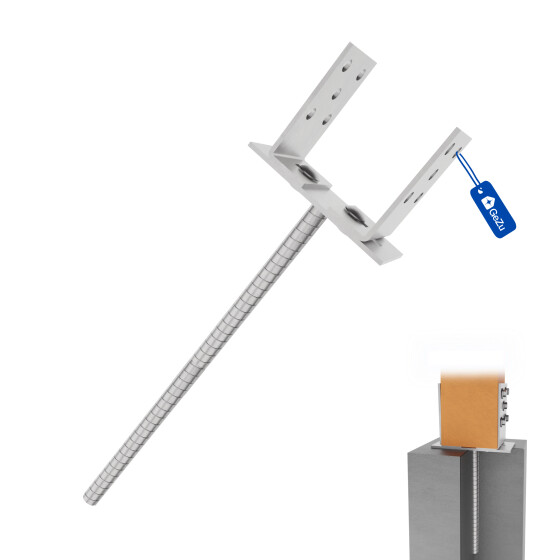

What is the adjustable post support with 400 mm ripped pin used for?
The adjustable U-post support with ripped pin is the ideal solution for anyone who needs maximum flexibility when fixing wooden posts. The infinitely adjustable fork with a clamping range of 0 to 160 mm makes it easy to accommodate a wide range of post widths – without the need for customisation. This makes the post base ideal for privacy screens, garden fences, patio constructions, pergolas or customised timber structures in outdoor areas.
Structure and application of the post base
The sturdy, 400 mm long, ripped pin is deeply anchored in the concrete foundation. It provides a particularly firm fit in the ground and reliably prevents twisting or pulling out of the carrier. After the concrete has cured, the wooden post is inserted into the fork and securely fastened with appropriate wood screws through the ten pre-drilled holes (Ø 11 mm).
The adjustable fork design allows for easy adjustment to the width of the post – ideal for different fence formats or custom sizes. Installation is quick and easy, with no need for special tools.
Notes and technical details of the post mount
The post holder is made of 3 mm galvanised steel, making it ideal for long-term outdoor use. The zinc coating provides reliable protection against corrosion and the effects of the weather.
A gap between the post and fork ensures adequate ventilation, which permanently protects the wood from rising damp – this prevents rot and increases the lifespan of the entire construction.
| Item information |
Value |
| Item weight: |
1,50 kg
|
Product safety information
Manufacturer information:
GeZu Impex GmbH
Zur Kisse 17
Nordrhein-Westfalen
Sundern, Deutschland, 59846
info@gezu-impex.com
https://www.gezu-impex.com
| Feature |
Specification |
| Clear width |
0 - 160 mm |
| Height of bracket |
100 mm |
| Depth of bracket |
60 mm |
| Thickness of bracket |
3 mm |
| Width of bracket |
0 - 160 mm |
| Holes |
10 holes Ø 11 mm |
| Lenght of pin |
400 mm |
| Ø of pin |
21 mm |
| Material |
Galvanized steel |
