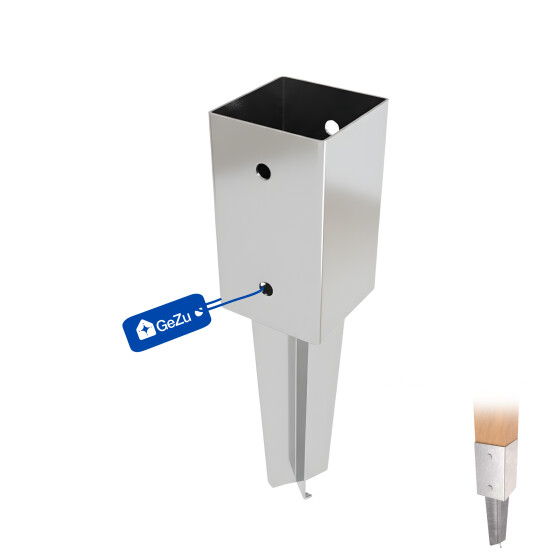

Bodenhülse zum Einbetonieren feuerverzinkt in verschiedenen Abmessungen

Ground Sleeve to concreted

SKU: 3108
Category: Post Support

The ground sleeve for setting in concrete can be used for the most diverse construction projects in the garden.

size
Schraubenset

from

5,65 €

incl. 19% VAT , plus (Paket EU Versand)

Choose tax zone / country of delivery

Available immediately

This item has variations. Please select the requested variation.

Description
Reviews

What is the concrete sleeve used for?

post anchors for setting in concrete are ideal for construction in the garden and are often used, for example, in the construction of a fence up to 1.50 m high.

How is the square sleeve constructed and how is it used?

The ground anchor is not driven in like other post anchors, but concreted in. The angled corners of the sleeve are helpful here, as they ensure that the ground sleeve is firmly anchored in the concreted ground and withstands the forces acting from outside, such as wind forces.

The post itself is attached using the appropriate fastening material. The necessary holes are already present in the side walls with a Ø of 11 mm. It is important that the post does not lie completely in the sleeve, otherwise the moisture can penetrate into the wood. An under ventilation must be given.

What should be considered and what are the technical details of the ground sleeve?

The post anchors are available in the following sizes: 71 × 71 mm and 91 × 91 mm. Due to the hot-dip galvanizing, the post anchors are protected against external weather influences.

Technical data - Available dimensions: 71 x 71 mm, 91 x 91 mm - Length: 350 mm - Holes: 4 holes Ø 11 mm - Material thickness: 2 mm - Material type: hot-dip galvanized steel
