What is the adjustable support base used for?

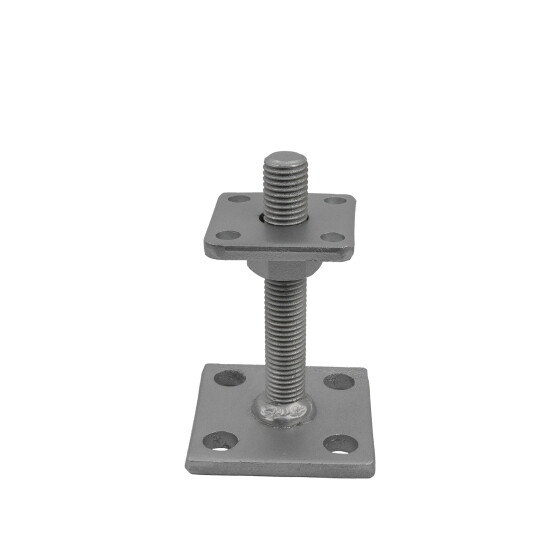

Post support Ulrich is height-adjustable even after installation thanks to the freely movable 6 mm thick support plate and is therefore used in many gardening projects.
How is the post support constructed and how is it used?
The Post support can be screwed to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or anchored using bolt anchors.
If the foundation does not have the same height everywhere, the Post support can be adjusted with the movable support plate and its locking nut in a range of 30 - 80 mm even after installation. The 100 mm long threaded rod with a diameter of 16 mm enables both the height adjustment function and the function of a Mandrel that is screwed into or out of the post when adjusting the height.
What needs to be considered and what technical details does the Post support have?
Important:
For stability reasons, around 10 - 20 mm of the adjustment range is required as thread security. Thanks to the zinc flake coating, the Ulrich Post support is optimally protected against external weather influences. The base plate measures 70 × 70 mm and the support plate measures 50 × 50 mm.
Technical details - Adjustment range: 30 - 80 mm - Support plate: 50 x 50 mm - Support plate material thickness: 6 mm - Support plate holes: 4 holes Ø 8 mm - Support plate hole spacing: 35 mm - Base plate: 70 x 70 mm - Base plate material thickness: 8 mm - Base plate holes: 4 holes Ø 13 mm - Base plate hole spacing: 45 mm - Thread thickness: M16 - Hexagon nut: AF 24 - Material type: steel zinc flake coated
| Item information |
Value |
| Item weight: |
0,52 kg
|
Product safety information
Manufacturer information:
GeZu Impex GmbH
Zur Kisse 17
Nordrhein-Westfalen
Sundern, Deutschland, 59846
info@gezu-impex.com
https://www.gezu-impex.com
Â
| Feature |
Specification |
| Adjustment range |
30 - 80 mm |
| Hexagon nut |
AF 24 |
| Ø pin / thread |
24 mm |
| Top plate |
50 x 50 mm |
| Material thickness of top plate |
6 mm |
| Holes top plate |
4 holes Ø 8 mm |
| Hole spacing support plate |
35 mm |
| Ground plate |
70 x 70 mm |
| Material thickness of ground plate |
8 mm |
| Holes ground plate |
4 holes Ø 13 mm |
| Hole spacing ground plate |
45 mm |
| Material |
Steel zinc flake coating |
