What is the Post support height adjustable used for?

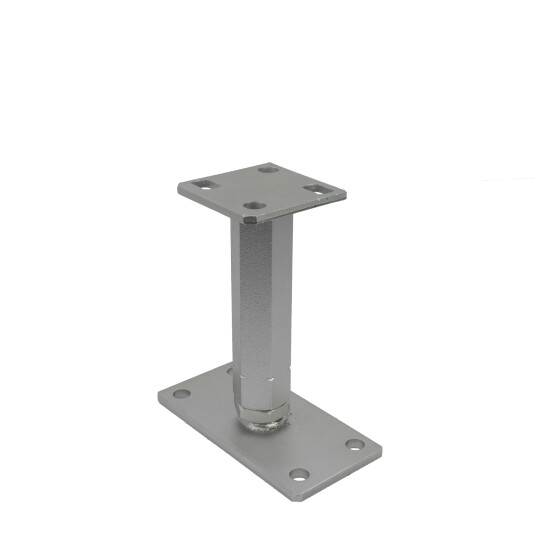

Post support Konrad height adjustable is height adjustable even after installation thanks to the right-hand / left-hand thread and is therefore used in many gardening projects.
How is the Post support constructed and how is it used?
The Post support can be screwed to a level concrete or wooden floor using 4 holes per plate, each with a diameter of 13 mm. If the foundation is not the same height everywhere, the Konrad post support can be adjusted in a range of 180 - 230 mm.
To prevent unintentional height adjustment, the post supports are equipped with a lock nut. The lock nut is screwed against the long nut and thus prevents unintentional loosening.
What needs to be considered and what technical details does the Post Base have?
Important:
For stability reasons, around 20 - 30 mm of the adjustment range is required as thread security. Thanks to the galvanisation, the Konrad post support is optimally protected against external weather influences.
Technical details - Adjustment range: 180 - 230 mm - Support plate: 80 x 80 mm - Support plate material thickness: 6 mm - Support plate holes: 2 slotted holes Ø 13 mm & 2 holes Ø 13 mm - Support plate hole spacing: 50 mm - Base plate: 80 x 160 mm - Base plate material thickness: 8 mm - Base plate holes: 4 holes Ø 13 mm - Base plate hole spacing: 50 & 130 mm - Hexagon nut: AF 36 - Slotted nut: AF 36 - Material type: Galvanised steel
| Item information |
Value |
| Item weight: |
2,30 kg
|
Product safety information
Manufacturer information:
GeZu Impex GmbH
Zur Kisse 17
Nordrhein-Westfalen
Sundern, Deutschland, 59846
info@gezu-impex.com
https://www.gezu-impex.com
Â
| Feature |
Specification |
| Adjustment range |
180 - 230 mm |
| Long nut |
AF 36 |
| Counter nut |
AF 36 |
| Top plate |
80 x 80 mm |
| Material thickness of top plate |
6 mm |
| Holes top plate |
2 Long holes Ø 13 mm, 2 Holes Ø 13 mm |
| Hole spacing support plate |
50 mm |
| Base plate |
80 x 160 mm |
| Material thickness of base plate |
8 mm |
| Holes base plate |
4 holes 13 mm |
| Hole spacing ground plate |
50 & 130 mm |
| Material |
Galvanized steel |
