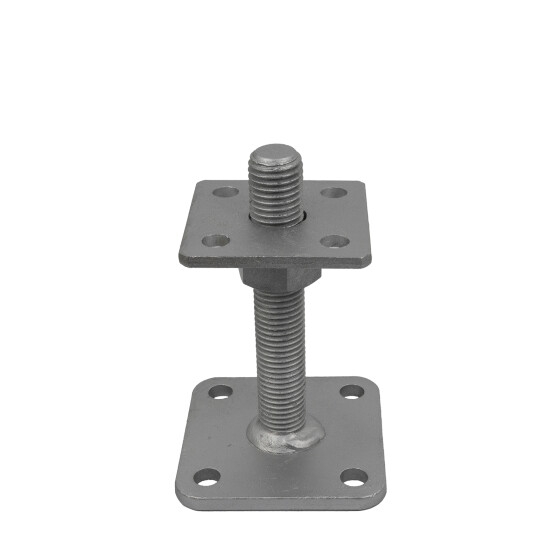

Post support Ulrich height adjustable, galvanised steel, coated, base plate 100 x 100 mm, support plate 80 x 80 mm, adjustment range 40 - 150 mm

Post support Ulrich height adjustable galvanised floor plate 100 x 100 mm base plate 80 x 80 mm adjustment range 40 - 150 mm individual parts

Post support Ulrich height adjustable galvanised steel floor plate 100 x 100 mm base plate 80 x 80 mm adjustment range 40 - 150 mm detail base plate

Adjustable Post Support Ulrich zinc flake M24 x 150 mm, 80 x 80 mm

SKU: 331624150100b
GTIN: 4260627272501
HAN: 331624150100b
Category: Post Support adjustable

Post supports Ulrich are height adjustable even after installation due to the freely movable 6 mm thick support plate and are therefore used in many horticultural projects.

thread
top plate
bottom plate
screw set

11,85 €

incl. 19% VAT , plus

From	Unit price / pc.
15	11,29 €*
30	10,77 €*
60	10,31 €*

Choose tax zone / country of delivery

Currently out of stock

What is the adjustable support base used for?

Post support Ulrich is height-adjustable even after installation thanks to the freely movable 6 mm thick support plate and is therefore used in many gardening projects.

How is the post support constructed and how is it used?

The Post support can be screwed to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or anchored using bolt anchors.

If the foundation does not have the same height everywhere, the Post support can be adjusted with the movable support plate and its locking nut in a range of 50 - 130 mm even after installation. The 150 mm long threaded rod with a diameter of 24 mm enables both the height adjustment function and the function of a Mandrel that is screwed into or out of the post when adjusting the height.

What should be noted and what technical details does the Post support have?

Important:

For stability reasons, around 10 - 20 mm of the adjustment range is required as thread security. Thanks to the zinc flake coating, the Ulrich Post support is optimally protected against external weather influences. The base plate measures 100 × 100 mm and the support plate measures 80 × 80 mm.

Technical details - Adjustment range: 50 - 130 mm - Support plate: 80 x 80 mm - Support plate material thickness: 6 mm - Support plate holes: 4 holes Ø 13 mm - Support plate hole spacing: 50 mm - Base plate: 100 x 100 mm - Base plate material thickness: 8 mm - Base plate holes: 4 holes Ø 13 mm - Base plate hole spacing: 70 mm - Thread thickness: M24 - Hexagon nut: AF 36 - Material type: Zinc flake-coated steel

Item information	Value
Item weight:	1,30 kg

Product safety information

Manufacturer information:

GeZu Impex GmbH
Zur Kisse 17
Nordrhein-Westfalen
Sundern, Deutschland, 59846
info@gezu-impex.com
https://www.gezu-impex.com

Feature	Specification
Adjustment range	50 - 130 mm
Hexagon nut	AF 36
Ø pin / thread	24 mm
Top plate	80 x 80 mm
Material thickness of top plate	6 mm
Holes top plate	4 holes Ø 13 mm
Hole spacing support plate	50 mm
Ground plate	100 x 100 mm
Material thickness of ground plate	8 mm
Holes ground plate	4 holes Ø 13 mm
Hole spacing ground plate	70 mm
Material	Steel zinc flake coating
