What is the Post support height adjustable used for

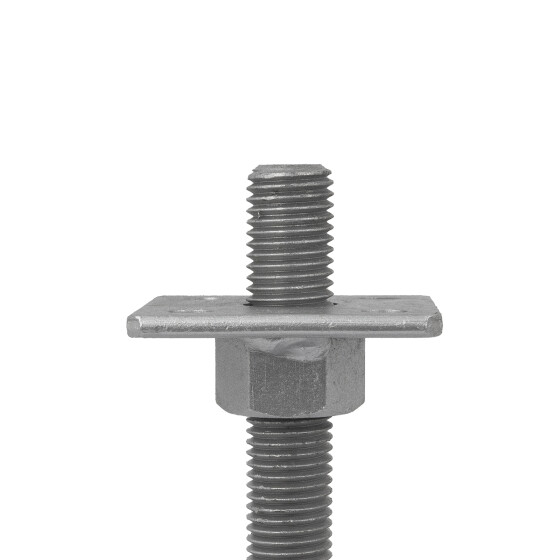

Post supports Alfred are very practical and are used in many garden & timber construction projects. The hexagonal nut is welded to the support plate and the welded joint is used to fix the plate in place.
How is the support base constructed and how is it used?
The post support can be screwed to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or anchored using bolt anchors.
If the foundation does not have the same height everywhere, the Post support can be adjusted with the movable support plate and its locking nut in a range of 50 - 130 mm even after installation. The 150 mm long threaded rod enables both the height adjustment function and the function of a Mandrel that is screwed into or out of the post when the height is adjusted.
What should be noted and what technical details does the Post Base have?
Important:
For stability reasons, around 10 - 20 mm of the adjustment range is required as thread security. Thanks to the zinc flake coating, Post support Alfred is optimally protected against external weather influences. The base plate measures 100 × 100 mm and the support plate measures 80 × 80 mm.
Technical details - Adjustment range: 50 - 130 mm - Support plate: 80 x 80 mm - Support plate material thickness: 6 mm - Support plate holes: 4 holes Ø 13 mm - Support plate hole spacing: 50 mm - Base plate: 100 x 100 mm - Base plate material thickness: 8 mm - Base plate holes: 4 holes Ø 13 mm - Base plate hole spacing: 70 mm - Ø Mandrel/thread: 24 mm - Hexagon nut: AF 36 - Material type: hot-dip galvanised steel Zinc flake-coated steel
| Item information |
Value |
| Item weight: |
1,30 kg
|
Product safety information
Manufacturer information:
GeZu Impex GmbH
Zur Kisse 17
Nordrhein-Westfalen
Sundern, Deutschland, 59846
info@gezu-impex.com
https://www.gezu-impex.com
Â
| Feature |
Specification |
| Adjustment range |
50 - 130 mm |
| Hexagon nut |
AF 36 |
| Ø pin / thread |
24 mm |
| Top plate |
80 x 80 mm |
| Material thickness of top plate |
6 mm |
| Holes top plate |
4 holes Ø 13 mm |
| Hole spacing support plate |
50 mm |
| Ground plate |
100 x 100 mm |
| Material thickness of ground plate |
8 mm |
| Holes ground plate |
4 holes Ø 13 mm |
| Hole spacing ground plate |
70 mm |
| Material |
Steel zinc flake coating |
Â
There are no reviews yet.
