What is the adjustable support base used for?

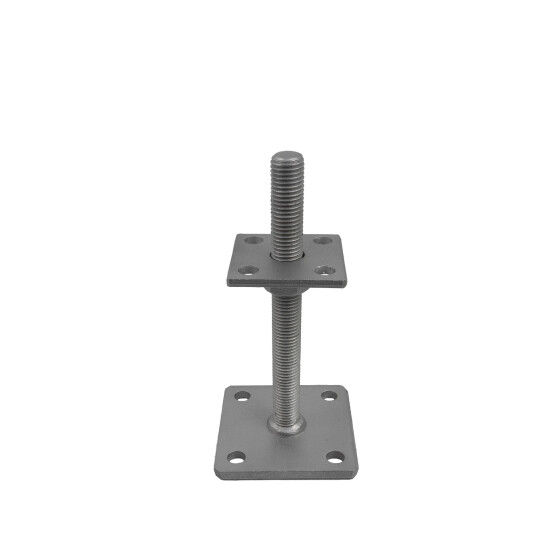

Post support Ulrich is height-adjustable even after installation thanks to the freely movable 8 mm thick support plate and is therefore used in many gardening projects.
How is the Post support adjustable base constructed and how is it used?
The Post support can be screwed to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or anchored using bolt anchors.
If the foundation does not have the same height everywhere, the Post support can be adjusted with the movable support plate and its locking nut in a range of 30 - 180 mm even after installation. The 200 mm long threaded rod with a diameter of 20 mm enables both the height adjustment function and the function of a Mandrel that is screwed into or out of the post when the height is adjusted.
What should be noted and what technical details does the Post support have?
Important:
For stability reasons, around 10 - 20 mm of the adjustment range is required as thread security. Thanks to the hot-dip galvanisation, the Ulrich Post support is optimally protected against external weather influences. The base plate measures 100 × 100 mm and the support plate measures 70 × 70 mm.
Technical details - Adjustment range: 30 - 180 mm - Support plate: 70 x 70 mm - Support plate material thickness: 6 mm - Support plate holes: 4 holes Ø 13 mm - Support plate hole spacing: 45 mm - Base plate: 100 x 100 mm - Base plate material thickness: 8 mm - Base plate holes: 4 holes Ø 13 mm - Base plate hole spacing: 70 mm - Thread thickness: M20 - Hexagon nut: AF 30 - Material type: Hot-dip galvanised steel
| Item information |
Value |
| Item weight: |
1,25 kg
|
Product safety information
Manufacturer information:
GeZu Impex GmbH
Zur Kisse 17
Nordrhein-Westfalen
Sundern, Deutschland, 59846
info@gezu-impex.com
https://www.gezu-impex.com
Â
| Feature |
Specification |
| Adjustment range |
30 - 180 mm |
| Hexagon nut |
AF 30 |
| Ø pin / thread |
20 mm |
| Top plate |
70 x 70 mm |
| Material thickness of top plate |
6 mm |
| Holes top plate |
4 holes Ø 13 mm |
| Hole spacing support plate |
45 mm |
| Ground plate |
100 x 100 mm |
| Material thickness of ground plate |
8 mm |
| Holes ground plate |
4 holes Ø 13 mm |
| Hole spacing ground plate |
70 mm |
| Material |
Hot-dip galvanized steel |
