What is the Post support adjustable used for
Post supports Alfred are very practical and are used in many garden & timber construction projects. The hexagonal nut is welded to the support plate and the weld is used to fix the plate in place.
How is the post support constructed and how is it used?

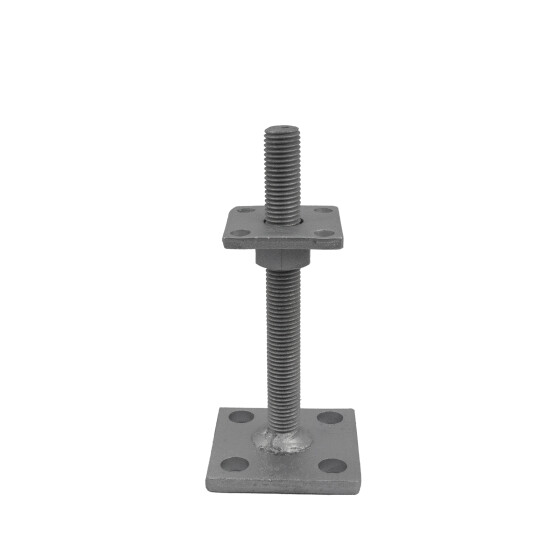

The post support can be screwed to a level concrete or wooden floor using 4 holes, each with a diameter of 13 mm, or anchored using bolt anchors.
If the foundation does not have the same height everywhere, the Post support can be adjusted in a range of 30 - 130 mm before final installation. The 150 mm long threaded rod enables both the height adjustment function and the function of a Mandrel that is screwed into or out of the post when adjusting the height.
What needs to be considered and what technical details does the support base have?
Important:
For stability reasons, around 10 - 20 mm of the adjustment range is required as thread safety. Thanks to the hot-dip galvanisation, the Alfred Post support is optimally protected against external weather influences. The base plate measures 70 × 70 mm and the support plate measures 50 × 50 mm.
Technical details - Adjustment range: 30 - 130 mm - Support plate: 50 x 50 mm - Support plate material thickness: 6 mm - Support plate holes: 4 holes Ø 8 mm - Support plate hole spacing: 35 mm - Base plate: 70 x 70 mm - Base plate material thickness: 8 mm - Base plate holes: 4 holes Ø 13 mm - Base plate hole spacing: 45 mm - Ø Mandrel/thread: 16 mm - Hexagon nut: AF 24 - Material type: Hot-dip galvanised steel
| Item information |
Value |
| Item weight: |
0,59 kg
|
Product safety information
Manufacturer information:
GeZu Impex GmbH
Zur Kisse 17
Nordrhein-Westfalen
Sundern, Deutschland, 59846
info@gezu-impex.com
https://www.gezu-impex.com
Â
| Feature |
Specification |
| Adjustment range |
30 - 130 mm |
| Hexagon nut |
AF 24 |
| Ø pin / thread |
16 mm |
| Top plate |
50 x 50 mm |
| Material thickness of top plate |
6 mm |
| Holes top plate |
4 holes Ø 8 mm |
| Hole spacing support plate |
35 mm |
| Ground plate |
70 x 70 mm |
| Material thickness of ground plate |
8 mm |
| Holes ground plate |
4 holes Ø 13 mm |
| Hole spacing ground plate |
45 mm |
| Material |
Hot-dip galvanized steel |
