What is the screw foot used for?
Our height-adjustable threaded foot plates are used to compensate for height differences in the ground. Within the adjustment range, the base plates enable scaffolding to be set up safely and horizontally.
How is the spindled base constructed and how is it used?
The scaffold feet have a diameter of 38 mm and are therefore suitable for all scaffolding with a tube diameter of 4.83 cm. We supply the spindles in the following lengths: 300 mm, 500 mm, 650 mm, 800 mm, 1000 mm.
The base plate of the scaffold base plate is 150 x 150 mm and has four holes. The diametrically opposed holes on the base plate have a diameter of 10 mm and 15 mm. This means that nothing stands in the way of anchoring to the ground. Our spindles are made of galvanised steel and are manufactured according to DIN 4425.
What should be noted and what are the technical details of the base plate with thread?
Important:

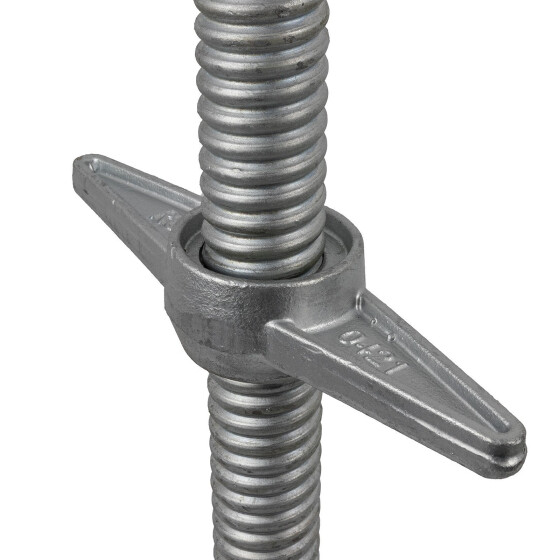

For reasons of stability, the top 150 - 250 mm of the scaffold spindle must Therefore, there is a lock at this threaded point to prevent the handle nut from unscrewing.
Technical data - Length: 800 mm (working height: 600 mm) - Diameter: 38 mm - Base plate: 150 x 150 mm - Base plate holes: 2 holes Ø 10 mm & 2 holes Ø 15 mm - in accordance with: DIN 4425 - material type: hot-dip galvanised steel
| Item information |
Value |
| Item weight: |
4,24 kg
|
Product safety information
Manufacturer information:
GeZu Impex GmbH
Zur Kisse 17
Nordrhein-Westfalen
Sundern, Deutschland, 59846
info@gezu-impex.com
https://www.gezu-impex.com
| Feature |
Specification |
| Diameter |
38 mm |
| Total lenght (work height) |
800 mm (work height 600 mm) |
| Base plate |
150 x 150 mm |
| Holes base plate |
2 holes Ø 10 mm |
| Holes base plate |
2 holes Ø 15 mm |
| According to |
DIN 4425 |
| Material |
Hot-dip galvanized steel |
